Model 201 VisualC++ sample code reference

C/C++ Sample source code
-- showing console style application for simplicity --

----- Level 1 -----
( use when no changing of default configuration, parameters required ) --

A little about this document

Quick jump to
Screenshots .cpp source code file sample .h header file sample About this document Log File sample

This documentation was created using the sample application found within

.
It's intended be used as a reference to understand the simplicity of interracting with the Model 201 using the combination of VisualC++ and our M201_SP.DLL dynamically linked library. The code shown could easily be converted to the very basic ANSI C format ( most of it already is just that ) since a console output is used instead of a GUI interface. The Library is included in the archive linked to above and all available function calls are well documented.

Shown here is the simplicity required to interract with the Model 201 using M201_SP.DLL. Only two simple function calls, EX_Run( ) and EX_Stop( ) into the DLL are required providing that you have connected the Model 201 to COM-1, a log file containing the data is acceptable, your analog data is connected to channel 0 of the Model 201.

This documention, shows the main source code file, the header file, and the data log file that is created. Follow the links just above to jump to each.

The Application Screenshots

Quick jump to
Screenshots .cpp source code file sample .h header file sample About this document Log File sample

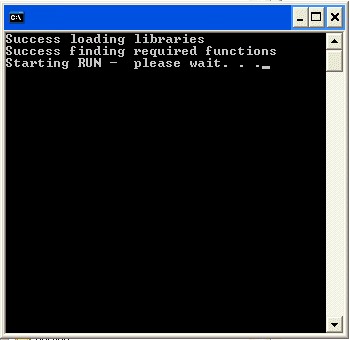

Starting Run
starts automatically using COM-1 and other defaults

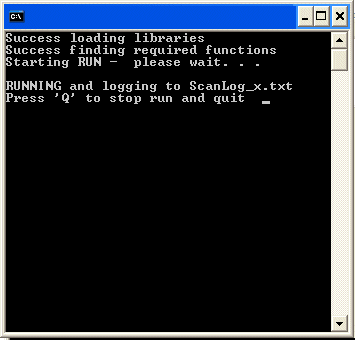

Running and logging to disk file
press 'Q' to exit

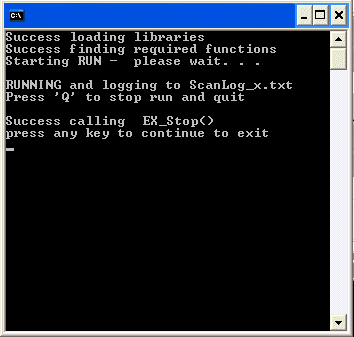

Run has stopped
log file closed - key to close the DOS window

The C++ Source Code file

Quick jump to
Screenshots .cpp source code file sample .h header file sample About this document Log File sample


// filename: mainSamp.cpp
// Demonstrates using  "EX_Run()"  and  "EX_Stop()"  to start scanning and logging to disk file using all default settings.
// Also shows how to setup pointers (in header file) for calling DLL functions and the way to use those pointers.

#include <windows.h>
#include <stdlib.h>
#include <wtypes.h>
#include <conio.h>
#include <stdio.h>
#include "mainSamp.h"

BOOLEAN InitLibFuncs()
{
hLib201 = LoadLibrary ("M201_SP.dll"); if(!hLib201) return FALSE;
EX_Run = (P_DLL_EX_RUN)GetProcAddress( hLib201, "EX_Run" ); if( !EX_Run ) return FALSE;
EX_Stop = (P_DLL_EX_STOP)GetProcAddress( hLib201, "EX_Stop" ); if( !EX_Stop ) return FALSE;
return TRUE;
}

int __cdecl main()
{
if(!InitLibFuncs()){ printf( "Failed to find load required DLL and/or find required functions" ); getch(); return 0;}
printf("Success finding required functions\nStarting RUN - please wait. . .");

if( ! EX_Run( ) ){ printf( "Failed calling EX_Run()" ); getch(); return 0;}
printf( "\n\nRUNNING and logging to ScanLog_x.txt\nPress 'Q' to stop run and quit " );

char cUserInputVal = NULL;
while(( cUserInputVal != 'Q' ) && ( cUserInputVal != 'q' ))
{
cUserInputVal = (char)getch();
switch(cUserInputVal)
{
case 'Q': case 'q':
if( ! EX_Stop( ) )printf( "Failed calling EX_Stop()" );
else printf( "\n\nSuccess calling EX_Stop()" );
printf( "\npress any key to continue to exit\n" );
getch();
break;
}
}
return 1;
}

The C++ Header file

Quick jump to
Screenshots .cpp source code file sample .h header file sample About this document Log File sample

//filename: mainSamp.h

HMODULE hLib201 = NULL;

typedef BOOLEAN( *P_DLL_EX_RUN ) (void);
P_DLL_EX_RUN EX_Run = NULL;

typedef BOOLEAN( *P_DLL_EX_STOP ) (void);
P_DLL_EX_STOP EX_Stop = NULL;

Sample Log File

Quick jump to
Screenshots .cpp source code file sample .h header file sample About this document Log File sample

Time / s   	0 - 0
00000.0   	1.4847893
00000.1   	1.4847744
00000.2   	1.4847792
00000.3   	1.4847816
00000.3   	1.4847762
00000.4   	1.4847774
00000.5   	1.4847816
00000.6   	1.4847816
00000.7   	1.4847732
00000.8   	1.4847816
00000.9   	1.4847792
00001.0   	1.4847720
00001.0   	1.4847762
00001.1   	1.4847726
00001.2   	1.4847786
00001.3   	1.4847738
00001.4   	1.4847726
00001.5   	1.4847762
00001.6   	1.4847726
00001.7   	1.4847828
00001.7   	1.4847762
00001.8   	1.4847792
00001.9   	1.4847762
00002.0   	1.4847756
00002.1   	1.4847792
00002.2   	1.4847780
00002.3   	1.4847714
00002.4   	1.4847756
00002.4   	1.4847798
00002.5   	1.4847756
00002.6   	1.4847786
00002.7   	1.4847738
00002.8   	1.4847792
00002.9   	1.4847786

Minimal System Interval:	0.08678
Applied Interval:        	0.08704
Subcycles averaged:      	35
Started:                 	Fri Nov 05 14:41:36 2004
Finished:                	Fri Nov 05 14:41:39 2004
Experiment Description:  	none
