Visual Basic Sample source code
-- a basic visual basic sample application --
-----   Level 2   -----
( basic, yet shows a lot of functionality )   --


A little about this document
Quick jump to
Screenshots     About this document



Since the sample source code is rather lengthy, please refer directly to the source code within    .   for more information. The sample shown there demonstrates various ways to interract with the M201_SP.DLL using the following API function calls:

EX_Run
EX_CheckRun
EX_Stop
EX_SendDigout
EX_GetDigin
EX_GetScanDataDbl
EX_GetMultiChanScanChanCodes
EX_SetMultiChanScanChanCodes
EX_SetLengthOfRunMs
EX_SetLengthOfRunSec
EX_SetRunEndBeepOptions
EX_StopRunEndBeep
EX_SetDataLogOptions
EX_GetOneConversion
EX_ShowDevSetupInfo_MsgBox
EX_ShowDevSetupInfo_WriteToFile
EX_SetDevToDefaultSetup
EX_SetDevToIniSetup

Note that the sample application is designed for interraction by a developer, so for certain functionality such as setting the end-of-scan beep tone, values are hard-coded into the sample application code rather than having some form of entry box where a user of the application can enter specific values. However, some of the interface such as digital I/O does have numeric data entry boxes for an application user. These things were done in order to keep the overall complexity of the code to a minimum while still demonstrating some of the functionality.

Please see the simpler version of VisualBasic sample code  VBSamp.htm  for a view at what of the code and setting up the calls into the DLL should look like.

















































Some Application Screenshots
Quick jump to
Screenshots     About this document



I've replaced the actual screenshot images on this page with links to each due to the quantity and size required for the shots of this particular sample application. If you have downloaded this file to your PC, or have a fast internet connect, you can click the following link to show this page complete with all images shown:
Show All Screenshots


You can also click on any of the following links to show the related screenshot

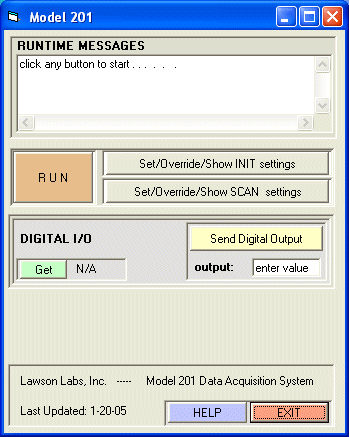

started and waiting for user input

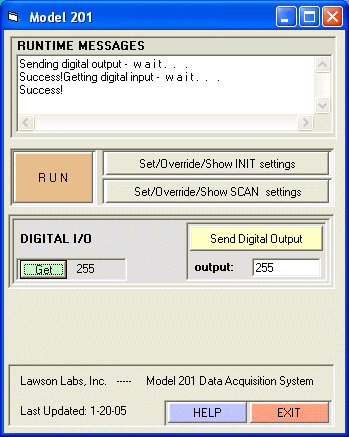

sent and read digital I/O
screen showing configuration setup information

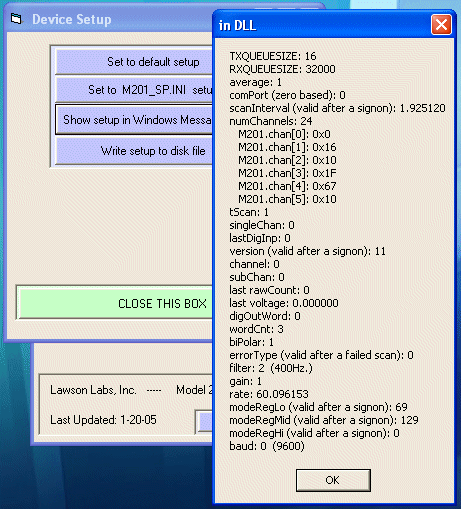

screen showing what the DLL sees as current configuration

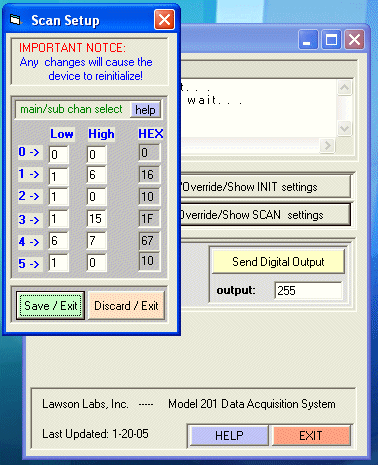

screen showing scan channel configuration options

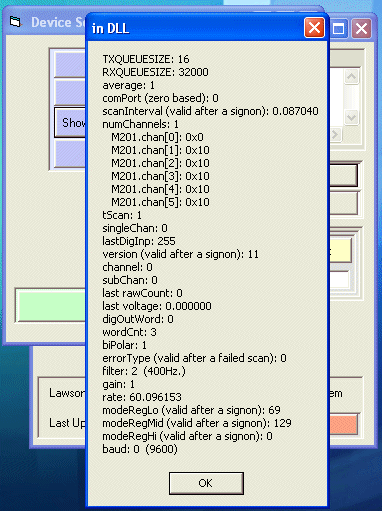

showing what the DLL sees as current configuration after scan-chan changes   ( note scan interval changed from what was shown in other shot of this screen)

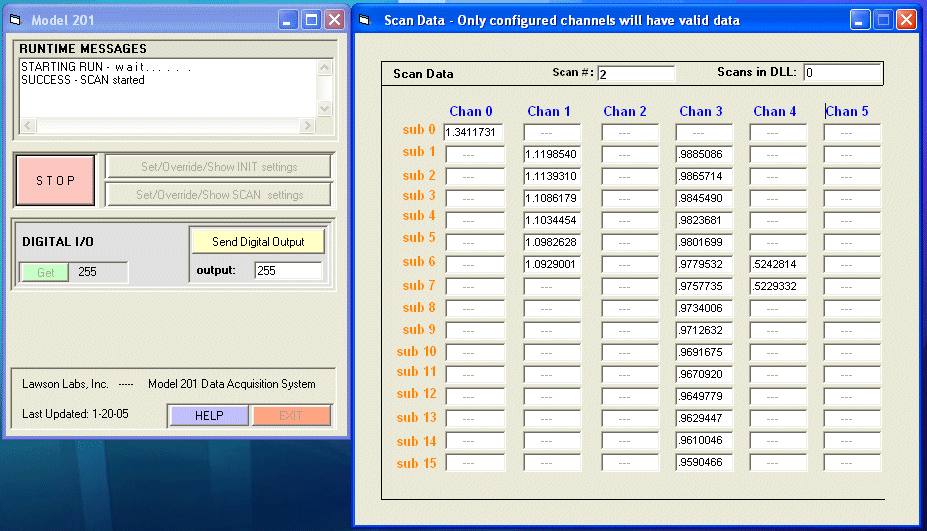

showing data being read during a scan
